Central medium-pressure Dust Collector AL-KO POWER VAC
Mobile suction system for extracting dust from hand sanders and workstations. The devices of the AL-KO POWER VAC series are used wherever strong suction power, and a high air volume flow are required. Typical applications include chip extraction from saws in window manufacturing or direct extraction of milling chips from multi-head welding machines.
AL-KO Quality
Receive consultation in Person
Operating principle
With a vacuum pressure of up to 10,000 Pa, the resulting chips and dust are quickly and safely extracted directly at their points of origin. This ensures a smooth production process and impeccable product quality. The bag filters guarantee a high separation efficiency for both coarse particles and fine dust. Additionally, it is possible to connect a piping system to link multiple processing machines to the dust collector. The AL-KO POWER VAC devices are equipped with the proven AL-KO OPTI JET filter cleaning system and come standard with a control unit featuring an integrated frequency converter. This allows the extraction performance to be adjusted to meet operational requirements at any time.
Your benefits
- High suction power
- Optimal filter cleaning
- CLEAN dust barrier
- Compact modular design
- Energy savings
- Low operating noise
Applications
- Cleaning suction for floors, machines, and workstations in industry and crafts
- Extraction from hand-held processing machines during grinding, milling, sawing, and deburring
- Suction of dry dusts up to dust class ST1
- Direct extraction at small process and work machines
Options & variants
- Various filter materials for different applications
- Post-filter stages in H13 or H14
- Soundproofing and exhaust hoods
- Suction accessories for direct extraction and cleaning tasks
- IE3 motors or higher quality
- Pre-separators, spark traps, and extinguishing devices
- Slide and flap valves for workplace connections
- Suction hoses in various variations

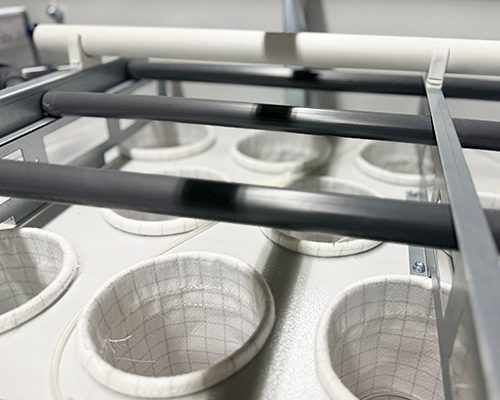

High-Performance Filter System
Technical data
AL-KO POWER VAC 125 / 140
| Typ | POWER VAC 125 P | POWER VAC 140 P |
|---|---|---|
| Article number | 192 899 | 192 900 |
| Nominal volume flow* | 1.000 m³/h | 1.400 m³/h |
| Max. vaccum | 10,000 Pa | 8,500 Pa |
| Filter cleaning | Compressed air | Compressed air |
| Sound pressure level** | 74 dB(A) | 74 dB(A) |
| Dimensions (L / W / H) in mm | 1,660 × 1,106 × 2,085 | 1,660 × 1,106 × 2,085 |
| Net weight without packaging | ca. 520 kg | ca. 520 kg |
| Suction nozzle | 125 mm | 140 mm |
| Motor nominal power | 5.5 kW | 5.5 kW |
| Filter area | 7.1 m² | 7.1 m² |
| Collection container | max. 150 L | max. 150 L |
*tested according to DIN EN 16770 **free-field measurement according to DIN EN 11201
