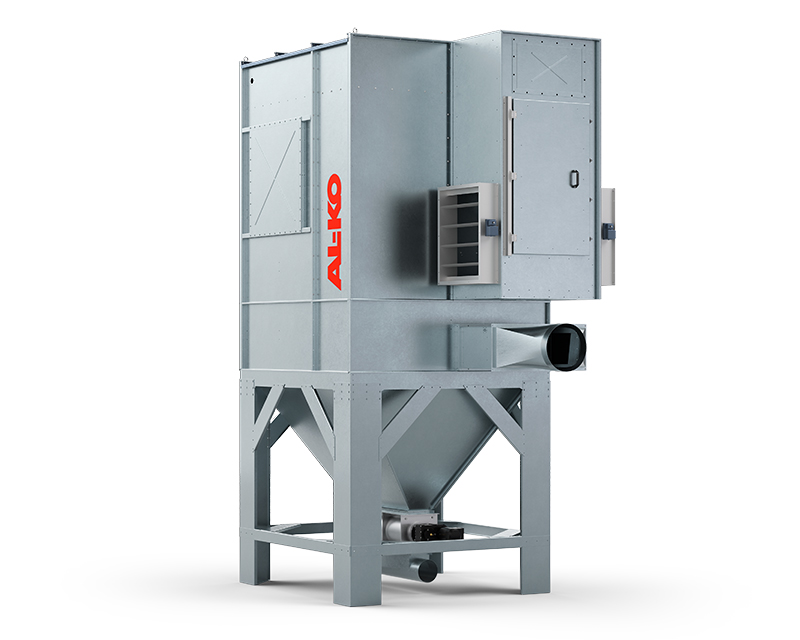

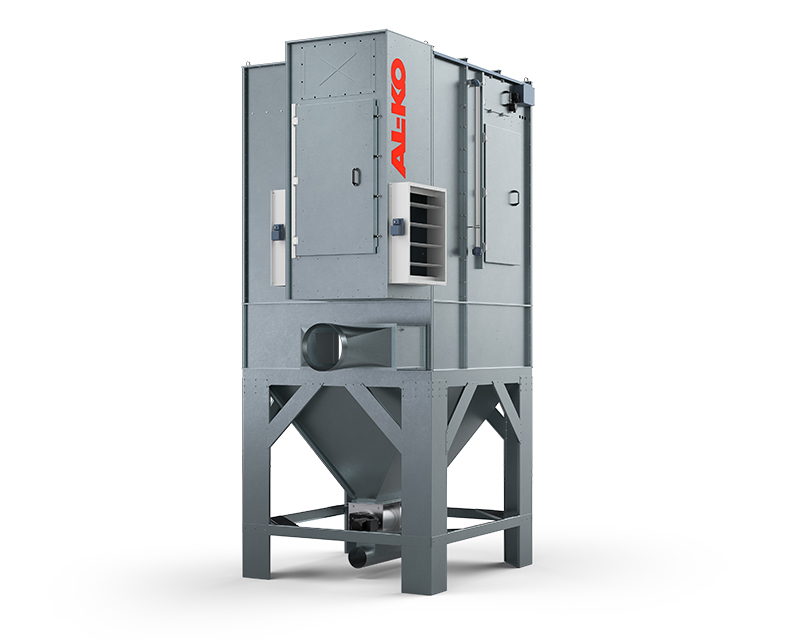

AL-KO ECO JET Compact Filter Systems
With airflows of up to 22,000 m³/h the stationary compact filter systems of the ECO JET series are suitable for a wide range of applications. They are the ideal extraction solution for machines in diverse production areas and industries, also for larger machining tools. BAFA eligible under Module 4.
AL-KO quality
Receive consultation in person
Operating principle
The ECO JET series is equipped with fans on the clean air side that extract air containing dust and swarf to the filter unit. The most powerful units of the DUO version have two fans connected in parallel. A flanged ring at the filter unit inlet allows connection of custom pipe diameters. The optimized airflow in the separation chamber removes coarse particles directly, before they reach the filter bags. The residual dust separated from the filters is automatically removed by the AL-KO OPTI JET® and the removed material is discharged into movable collecting containers placed under the filter.
Your benefits
- Wide range of standard extraction systems with numerous custom adaptations and options
- Consistently high suction power due to integrated pre-separator and AL-KO OPTI JET filter cleaning system
- Reduced heating costs, since 100 % recirculating air operation is possible in many cases
- Compact design for smaller footprint
- Suitable for indoor and outdoor installation
- Available in ATEX-compliant version
- Extensive accessories and numerous options for individual device configurations
- BAFA eligible under Module 4
Applications
- Dust extraction at production machinery, machining centers, pipeline systems with multiple extraction points
- Direct extraction in continuous operation
- In industries such as timber processing and woodworking, carpentry, joinery, furniture making, plastics manufacturing and processing, paper production, orthopedics and many others
Options & variants
- Different discharge variants such as rotary lock valve, briquette press, round discharge, moving floor or chain floor
- Patented AL-KO LEVEL CONTROL 21 fill level monitor
- Different filter materials for the particular application
- Fire and explosion protection systems
- Diverse control options, also with frequency inverter for on-demand adjustment of the fan power
- Combination with AL-KO thermal recovery systems for exhaust air control to minimize heating costs
- Extensive accessories, such as pipes, hoses, capturing hoods, etc.
AL-KO systems are ready for use in a very short time because they consist of prefabricated elements. Watch the video to see how quickly they can be set up!
Technical data
AL-KO ECO JET
| Device type | ECO JET Typ 2 | ECO JET Typ 3 | ECO JET Typ 4 | ECO JET Typ 5 | ECO JET Typ 6 | ECO JET Typ DUO 6 | ECO JET TYP DUO 8 | ECO JET Typ DUO 10 |
|---|---|---|---|---|---|---|---|---|
| Max. airflow in m3/h | 2,300 | 2,500 - 4,200 | 6,045 - 10,000 | 6,045 - 10,000 | 7,770 - 10,000 | 5,700 - 13,000 | 8,000 - 17,000 | 8,000 - 22,000 |
| Max. vacuum in Pa. | 2,800 | 4,400 - 5,500 | 5,200 - 6,000 | 5,200 - 6,000 | 4,900 - 5,500 | 4,900 - 5,700 | 5,500 - 5,700 | 4,900 - 5,500 |
| Motor rating in kW | 3 | 5.5 - 11 | 7.5 - 15 | 7.5 - 15 | 11 - 18.5 | 15 - 18.5 | 2x11 - 2x15 | 2x11 - 2x18.5 |
| Filter area m2 | 17.3 | 23 - 38.8 | 28.8 - 58.2 | 40.3 - 77.6 | 51.8 - 97 | 57.6 - 97 | 69.2 - 116.4 | 92 - 155.2 |
| Dimensions (L x W x H) in mm | 2,225 x 1,122 x 2,959 | 2,440 x 1,122 x 4,816 | 3,188 x 1,122 x 5,269 | 3,950 x 1,122 x 5,562 | 4,563 x 1,122 x 4,057 | 2,530 x 2,12 x 5,245 | 3,188 x 2,121 x 5,460 | 3,919 x 2,121 x 5,572 |
All values are approximate and refer to the basic version; subject to technical modifications
