AL-KO PROFI JET Modular Filter System
The modular design of PROFI JET® modular filter systems allow individual planning and the construction of extraction solutions for virtually any required air volume as well as every conceivable application. The insulated wall panels of the time-proven system ensure outstanding noise protection and minimal thermal loss when installed outdoors.
AL-KO quality
Receive consultation in person
Operating principle
In the individually planned extraction systems of the PROFI JET series, a sturdy steel frame is used for the basic construction. The frame is completely planked with insulated, double walled, powder coated sheet steel panels, so that all elements of the system, including the fan, filter cleaner and discharge components are within the system enclosure to protect them against dirt and weather. The fans on the clean air side are installed in the upper area of the system, where they extract the air containing dust and swarf into the filter unit. A large pre-separator chamber effectively removes large particles and swarf. The downstream filter bags or cartridges remove the remaining fine dust. The filtered exhaust air is directed through a sound-insulated return air chamber either back into the building or into the environment.
Your benefits
- Individual, custom-fit planning and implementation of your extraction system
- Low-cost and fast availability due to modular design with standard components
- Insulated panels ensure quiet operation and low costs
- Consistently high suction power due to integrated pre-separation chamber and AL-KO OPTI JET ® filter cleaning system
- Reduced heating costs, since 100 % recirculating air operation is possible in many cases
- Compact design for smaller footprint
- Suitable for indoor and outdoor installation
- Powder coated panels for a professional look
- Available in ATEX-compliant version
- Extensive accessories and numerous options for individual device configurations
Applications

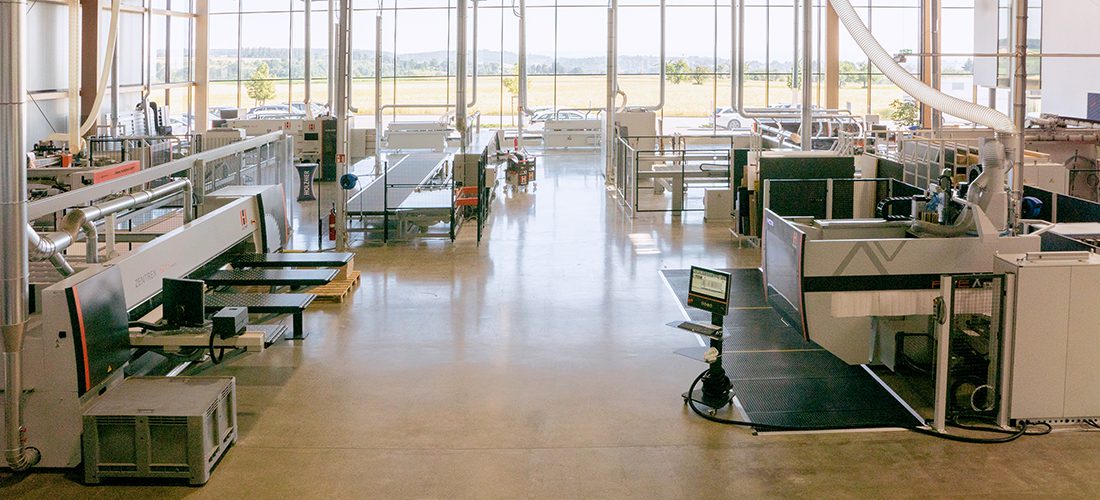

- Extraction at multiple machine tools, workplaces or entire production areas
- Ventilation and extraction of room air at enclosures and work booths
- For virtually all types of dust and swarf
- Also for dusts and applications with ATEX classification
- Extraction primarily in applications such as wood, plastics, metal, welding, cutting, recycling and many others
Options & variants
- Fan version corresponding to application and customer requirement
- Different discharge variants such as rotary lock valve, briquette press, round discharge, moving floor or chain floor
- Patented AL-KO LEVEL CONTROL 21 fill level monitor
- Different filter materials for the particular application
- Fire and explosion protection systems
- Diverse control options, also with frequency inverter for on-demand adjustment of the fan power
- Combination with AL-KO thermal recovery systems for exhaust air control to minimize heating costs
The modular design of the AL-KO PROFI JET with many prefabricated elements makes it possible to set up even large systems in a very short time.
Technical data
AL-KO PROFI JET
| Device type | PROFI JET Typ 1 | PROFI JET Typ 3 | PROFI JET Typ 5 | PROFI JET Typ 10 | PROFI JET Typ 16 |
|---|---|---|---|---|---|
| Max. airflow in m³/h | 12,000 | 15,000 | 26,000 | 75,000 | 120,000 |
| Max. vacuum in Pa. | 3,100 | 3,000 | 3,000 | 4,300 | 3,900 |
| Motor rating in kW | 15 | 18.5 | 2 x 18.5 | 3 x 37 | 6 x 30 |
| Filter area m² | 137.2 | 100 | 176 | 500 | 800 |
| Dimensions (L x W x H) in mm | 2,136 x 1,606 x 6,964 | 2,447 x 1,606 x 7,373 | 2,907 x 3,212 x 7,373 | 6,424 x 3,212 x 7,832 | 9,636 x 3,212 x 9,185 |
All values are approximate and refer to the basic version; subject to technical modifications
