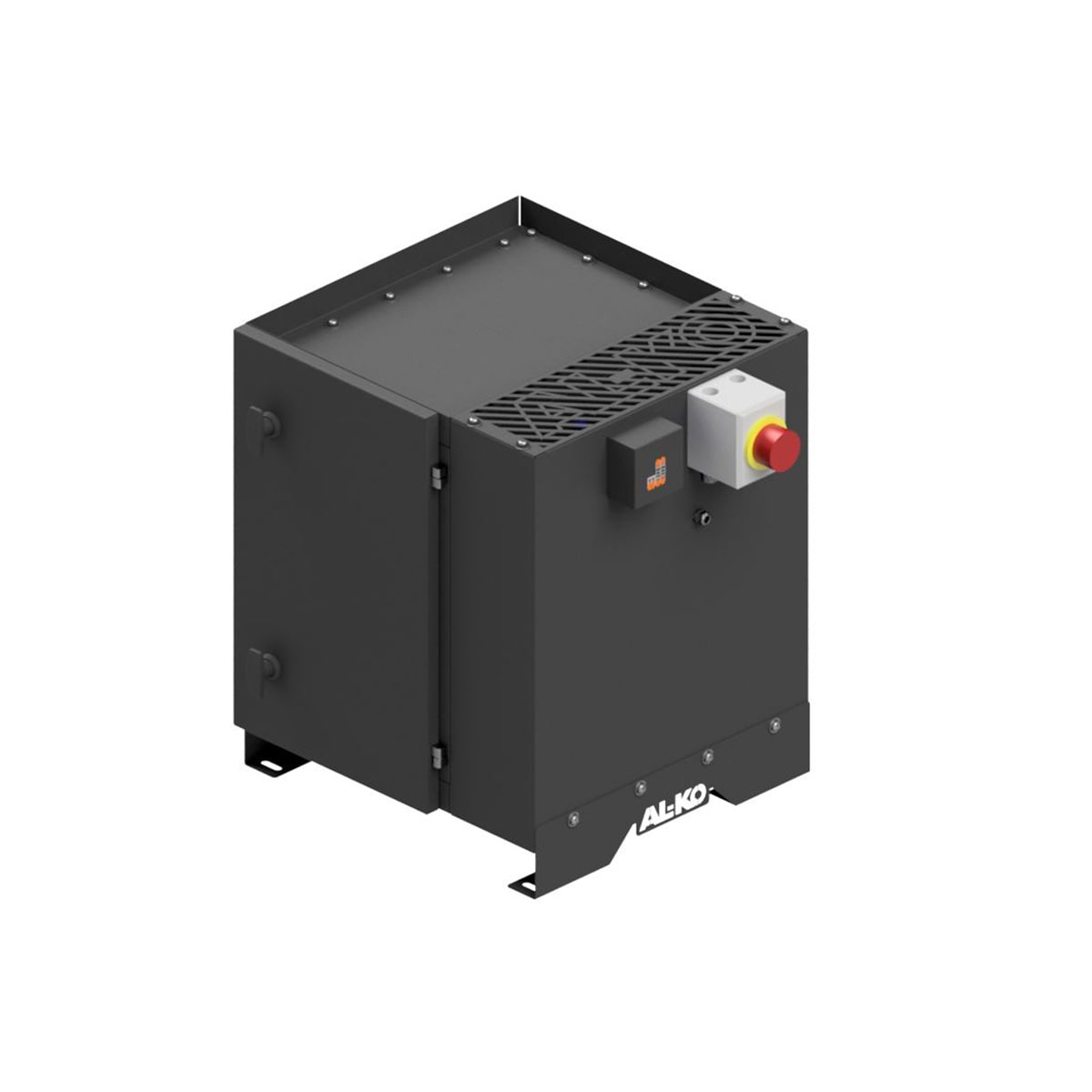

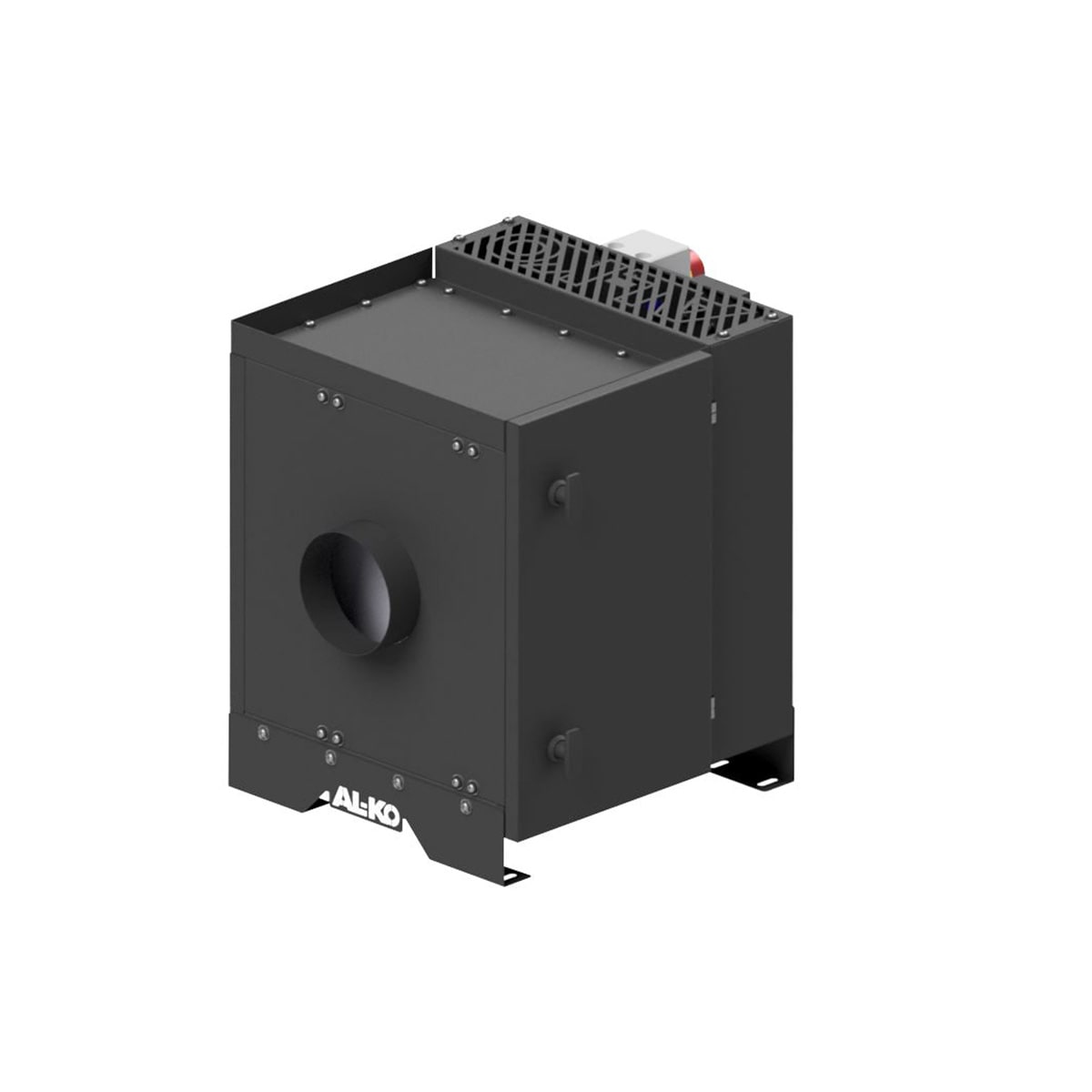

Oil and Emulsion Mist Separator AL‑KO OIL JET
Powerful single station extraction units for removing coolant and lubricant mist from lathes and machining centers, featuring a three stage filter system. The AL-KO OIL JET 600 and OIL JET 1200 oil mist separators are the ideal solution for efficient direct extraction of oil mist and emulsion mist from coolants and lubricants on all common turning, grinding, and milling machines.
AL‑KO Quality
Get personal consultation!
Functionality

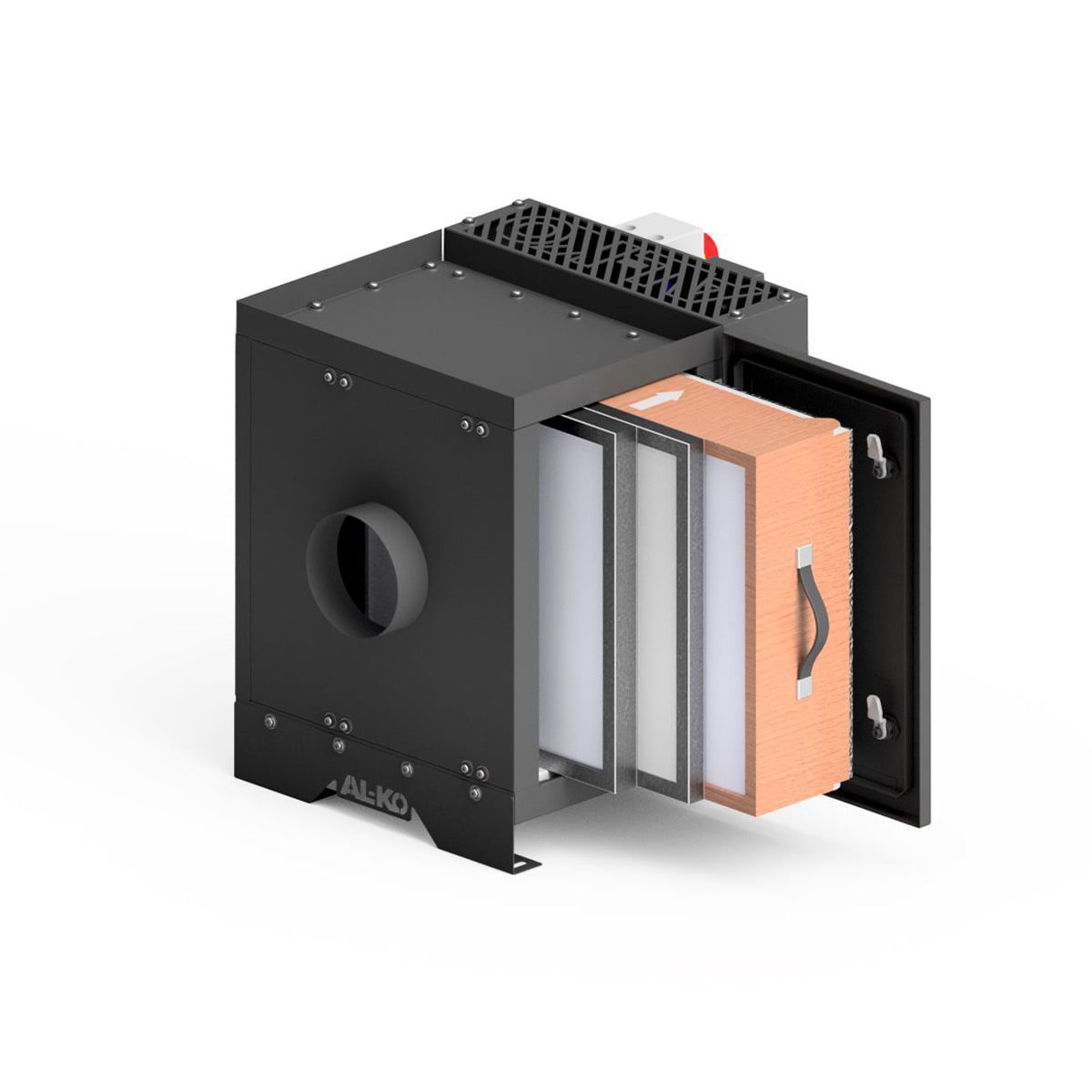

The highly effective filtration system of the AL-KO OIL JET emulsion and oil mist separators includes three standard filter stages that clean the extracted air from emulsion components and material particles. The first filter stage (a washable metal mesh filter) removes coarse particles. The second filter stage consists of a drained, nano coated mat (LoTex®) with frame. The main filter cassette, acting as the third filter stage, removes the finest residual particles (ePM1 80%). The emulsion separated in the second filter stage is collected in the lower part of the unit and can be drained.
Your Advantages
- Compact design
- High separation efficiency through a 3 stage filter system
- Energy efficient EC motors
- Simple, tool free filter replacement
- Easy installation on the machining equipment
- Many options for further customization
Applications and Areas of Use
The AL-KO OIL JET oil mist separators are designed for use on modern lathes, machine tools, and metal cutting equipment. Extraction of emulsion and oil mist takes place directly from the machining chamber. AL-KO OIL JET units are suitable for all common coolants and lubricants. They can be mounted directly on the machine tool or placed next to it on an optional stand column. Depending on the size of the machine chamber, operating time, and coolant used, either the OIL JET 600 or the more powerful OIL JET 1200 model is selected.
Options & Accessories
- Pressure gauge for monitoring filter resistance

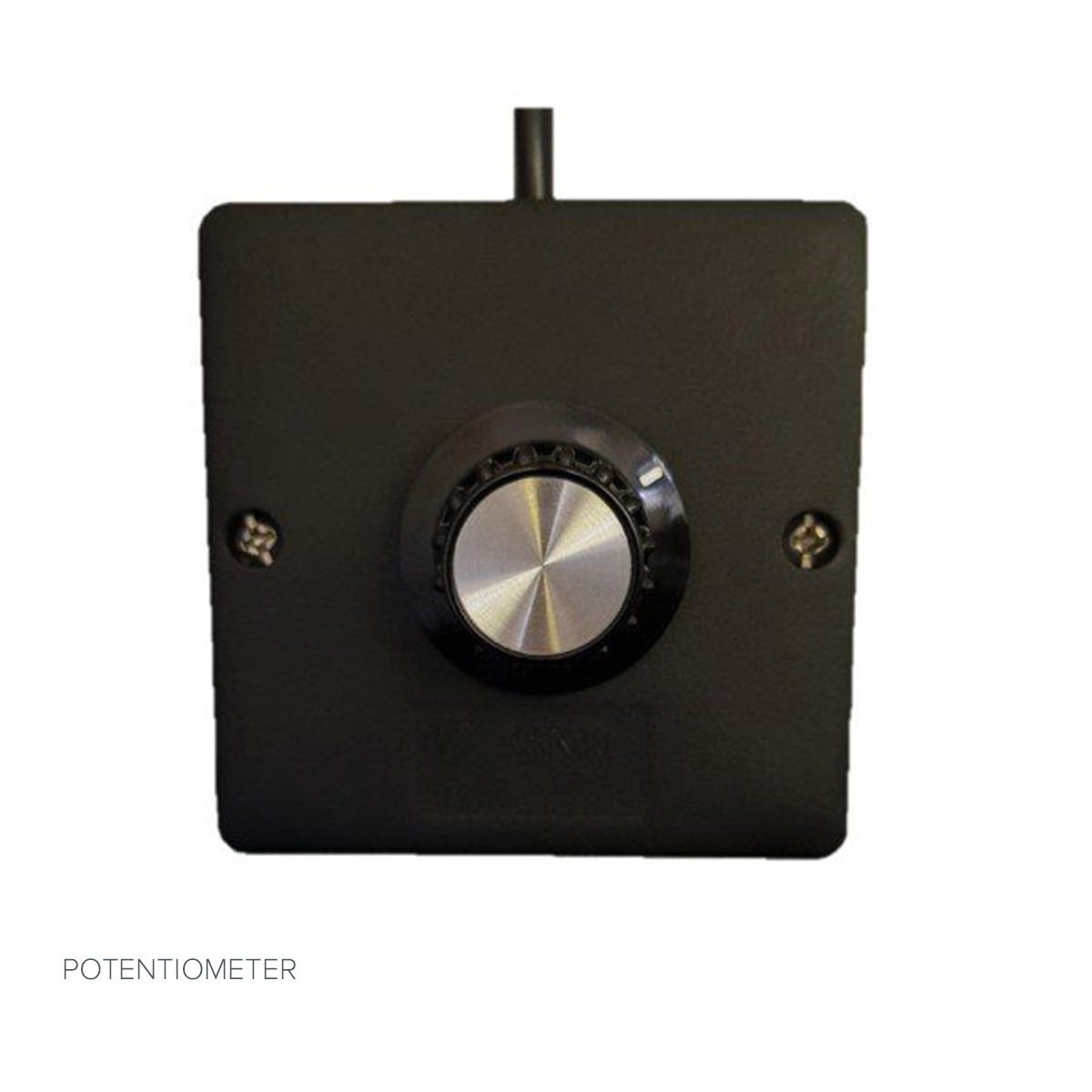

- Potentiometer for adjusting suction performance
- H13 filter instead of the standard third filter stage
- Stand column for positioning the OIL JET units
- Oil resistant suction hose
- 400 V supply voltage
Technical data
AL-KO OIL JET
| Device Type | OIL JET 600 | OIL JET 1200 |
|---|---|---|
| Article Number | 197 354 | 197 355 |
| Inlet Nozzle Diameter (mm) | 150 | 150 |
| Motor Rated Power (kW) | 169 | 500 |
| Voltage (V/Hz) | 230 / 50 | 230 / 50 |
| Airflow Volume (m³/h) | 600 | 1,200 |
| CNC Machining Chamber Volume (m³) | 1–6 | 4–8 |
| Filter System | 3-stage: 1st stage: Metal mesh, 2nd stage: Filter mat (LoTex®), 3rd stage: Main filter (ePM1 80%) | 3-stage: 1st stage: Metal mesh, 2nd stage: Filter mat (LoTex®), 3rd stage: Main filter (ePM1 80%) |
| Sound Pressure Level (dB) | 65 | 69 |
| Dimensions (W x D x H in mm) | 625 x 500 x 580 | 685 x 500 x 580 |
| Weight (kg) | 28 | 33 |
All values are approximate. Technical modifications and errors reserved.
