High Vacuum Dust Collector AL-KO CLEAN VAC
Central vacuum system for use in industry and crafts. Equipped as standard with the AL-KO OPTI JET® automatic filter cleaning system – for long filter service life and consistently high suction power. Further features are the compact design, the versatile application possibilities and the extensive range of accessories.
AL-KO Quality
Receive consultation in person
Operating principle
The AL-KO CLEAN VAC central vacuum systems are the ideal solution for direct extraction at hand-guided machining centers and as central cleaning vacuums for entire workshop or production areas. Wherever strong suction power is required, or long ductwork distances need to be overcome, the AL-KO CLEAN VAC units are the perfect solution.
Your benefits
- High suction power
- Plug & Play in perfection
- 100 percent air recirculation
- Appealing appearance
- Low noise
- Easy handling
Applications
- Extraction for hand-guided machining centers, e.g., in carpentry, grinding shops, training workshops
- Cleaning of floors and machines in workshops, production areas, or warehouses
- Direct extraction at small diameters such as filling stations, dosing systems, etc.
Options & variants
- Pipes and fittings made of galvanized steel for the construction of individual duct systems
- Suction accessories for direct extraction and cleaning tasks
- Slides and flap valves for workstation connections
- Suction hoses in suitable diameters, designs, and lengths

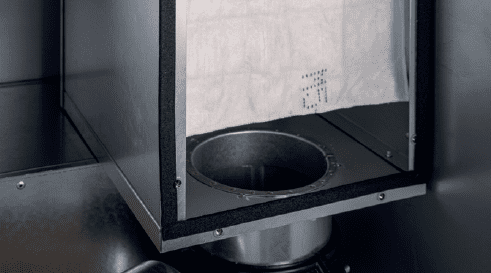

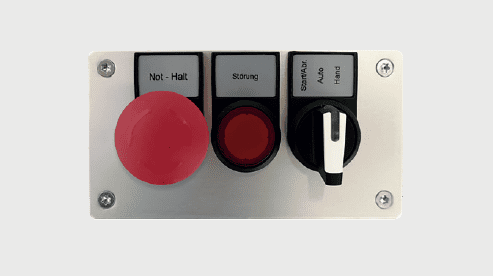

Filter Technology and Control Unit

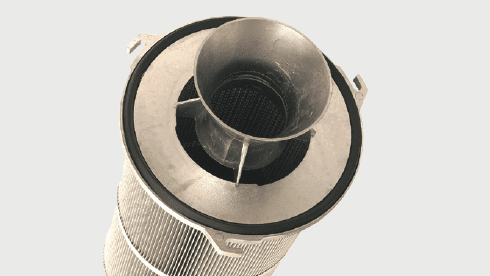

AL-KO OPTI JET® filter cleaning system

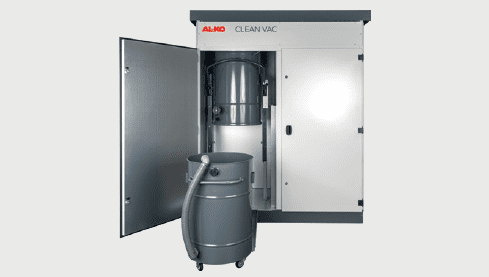

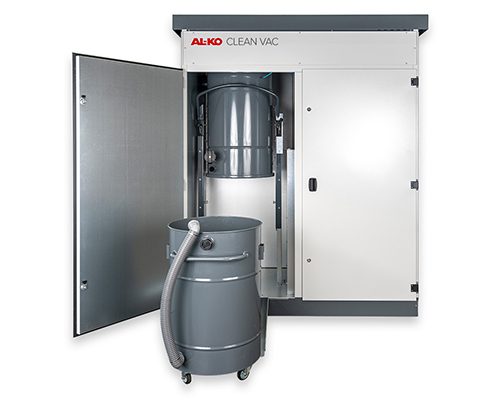

Disposal system
Technical data
AL-KO CLEAN VAC 8.5 / 12.5
| Typ | CLEAN VAC 8.5 | CLEAN VAC 12.5 |
|---|---|---|
| Article Number | 197 490 | 197 489 |
| Nominal volume flow* | 860 m³/h | 1,500 m³/h |
| Vacuum at nominal flow rate | 230 mbar | 250 mbar |
| Filter cleaning | Compressed air | Compressed air |
| Sound pressure level** | 72 dB(A) | 72 dB(A) |
| Dimensions (L / W / H) in mm | 1,956 × 1,038 × 2,430 | 1,956 × 1,038 × 2,430 |
| Net weight without packaging | ca. 770 kg | ca. 800 kg |
| Suction nozzle | 133 mm | 133 mm |
| Motor nominal power | 8.5 kW | 12.5 kW |
| Collection container | max. 200 L | max. 200 L |
*tested according to DIN EN 16770 **free-field measurement according to DIN EN 11201
