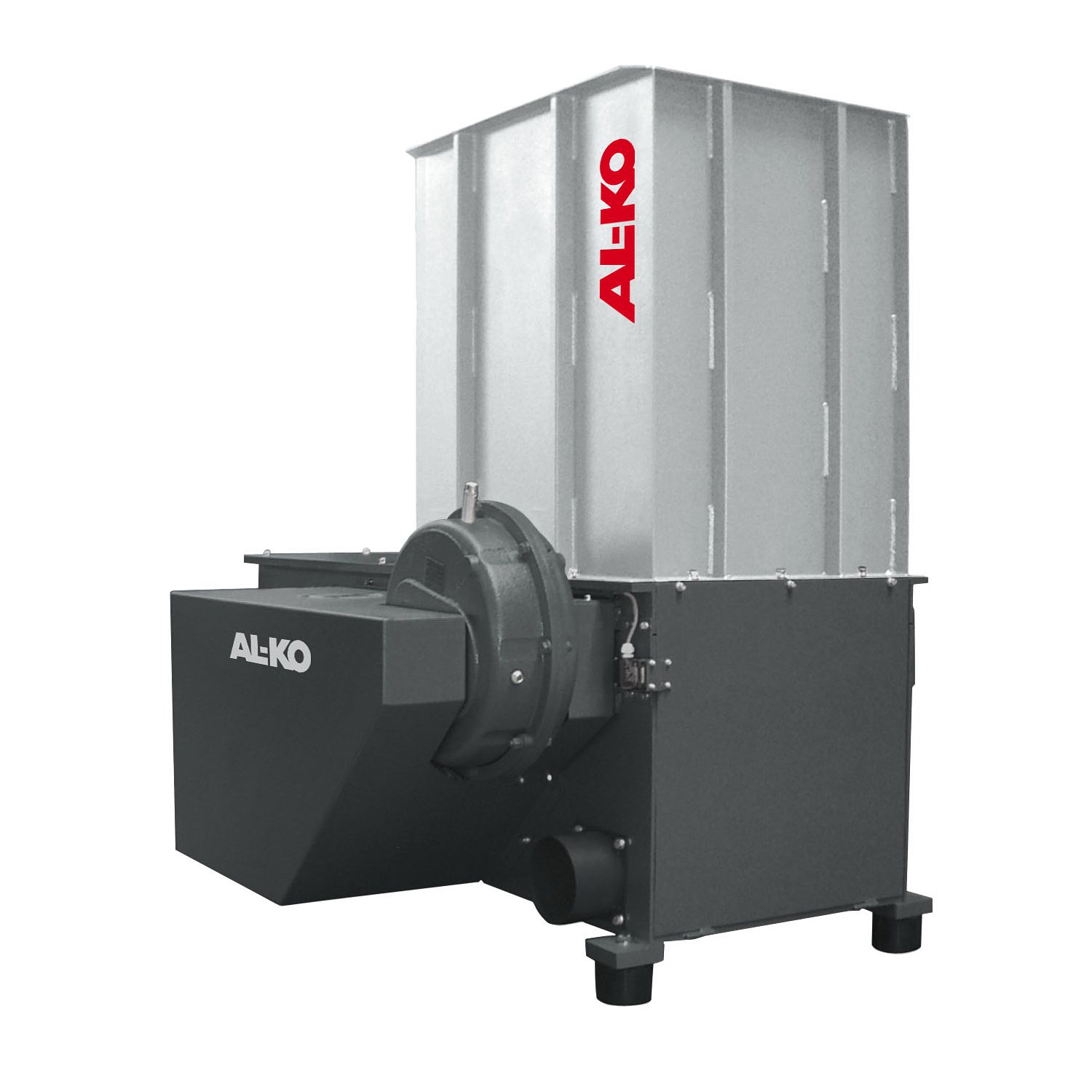

AL-KO AZR 600 Shredder
The AL-KO AZR 600 shredder processes pallets, chipboard and MDF boards, as well as all other types of wood materials to create chips for easy disposal.
AL-KO quality
Receive consultation in person
Operating principle
The AL-KO AZR 600 shredder is designed for shredding all types of wood materials. It processes pallets, chipboard and MDF boards, and similar wood materials to create chips for easy disposal. The material is fed through the feed hopper into the device, where it is shredded by four-way rotating blades/cutting elements. Power is transferred from the motor to the cutting tools by means of V-belts and gears.
Your benefits
- Shredding of wood waste into chip form with a minimal volume
- Powerful and low-maintenance design
Applications
- All wood processing plants
- Furniture manufacturers
- Warehouses and freight carriers
Technical data
AL-KO shredder AZR
| Device type | |
|---|---|
| Motor rating in kW | 18.5 |
| Cutting system | 14 blades |
| Controller | SPS |
| Extraction nozzle Ø in mm | 160 |
| Overall dimensions (L x W x H) in mm | 1,800 x 1,230 x 1,640 |
| Weight kg | 1,300 |
